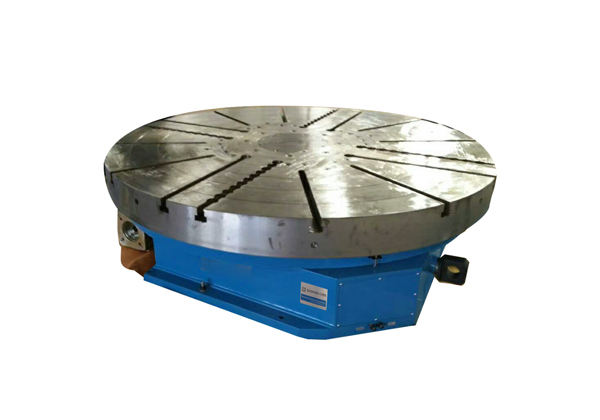

ZT12 (1000 3500) series horizontal CNC turntable

ZT12 (1000 3500) series horizontal CNC turntable
  • dahua


ZT 12 series CNC rotary table is the key supporting accessories of all kinds of CNC boring and milling machine machining center, can be horizontally installed on the host work table, used for the fourth rotation shaft of the host, or directly used as the workbench of the machine tool. Under the control of the relevant control system of the main machine, the rotary table can realize the machining of equal and unequal holes, slots or continuous special surfaces, and ensure high machining accuracy.

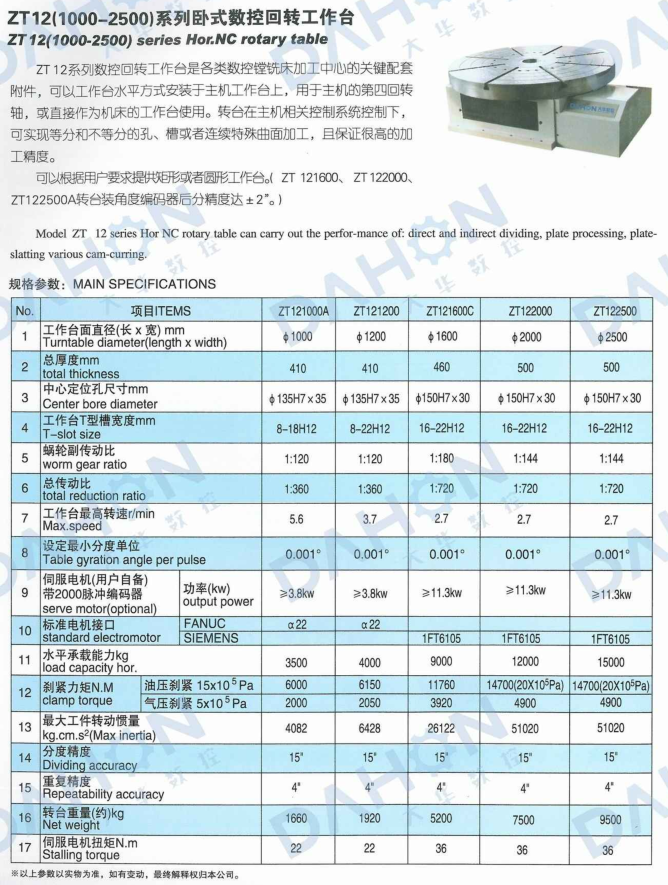

Rectangular or circular table dZT 121600, ZT 122000, ZT122500A turntable equipped with Angle encoder can be provided according to user requirements.

CNC turntable is an important machine tool accessories, can be rotated around the vertical axis and horizontal axis of the mechanical table, its application provides rotary coordinates for the machine tool, through the fourth axis, the fifth axis to drive the turntable to complete equal, unequal or continuous rotary processing, making it possible to process complex surfaces, expand the processing range of the machine tool.
